HR 6283

type ST · family 1LP · 16.4 kV maximum anode voltage · 90° deflection · 3 windings · 443 g

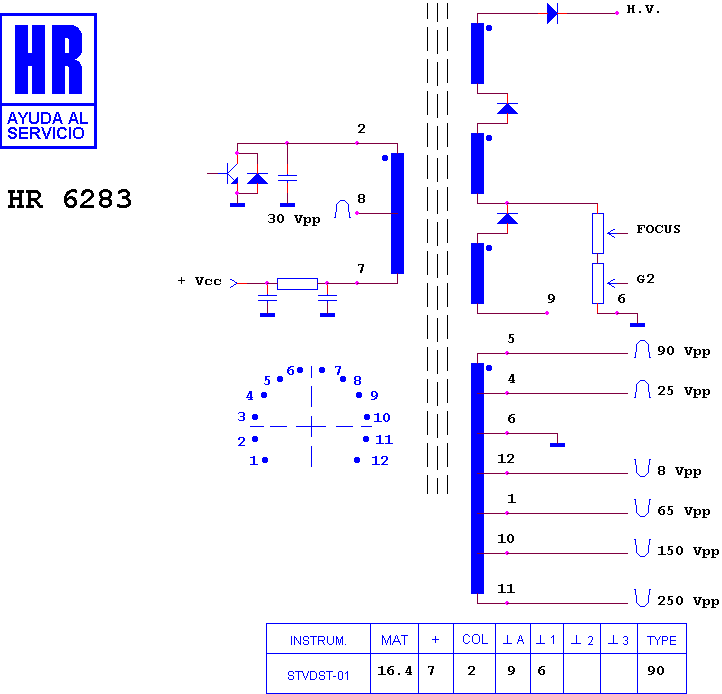

Schematic diagram for HR 6283
schematic

Manufacturer equivalents (3)

043 T 220021 · 3722002 · AM 1422180

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7018 · HR 7908 · HR 7910 · HR 7997 · HR 80293 · HR 7585 · HR 8263 · HR 7856 · HR 8782 · HR 7532 · HR 7789 · HR 7511

Fitted to (3)

AMS COLOUR TELEVISION · AMS CTV 2200 · AMS CTV 2210

Search this part in the full database
