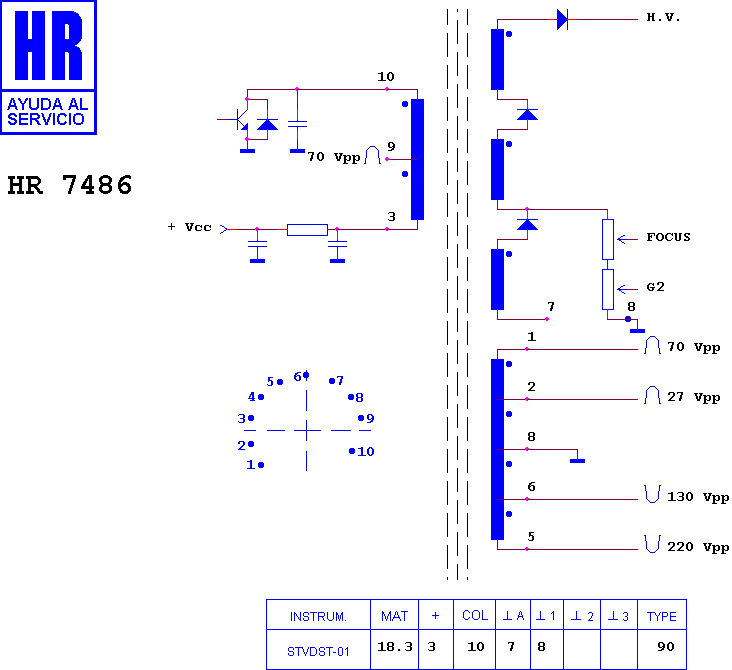

HR 7486

type ST · family 1XP1 · 18.3 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (6)

154 074 N · 154 074 Q · 154 169 C · 154 182 J · 154 182 L · SP 142

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7921 · HR 6127 · HR 6283 · HR 8135 · HR 7585 · HR 7908 · HR 8047 · HR 8127 · HR 7856 · HR 8820 · HR 8143 · HR 7592

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

LG - GOLDSTAR CMR 4540
