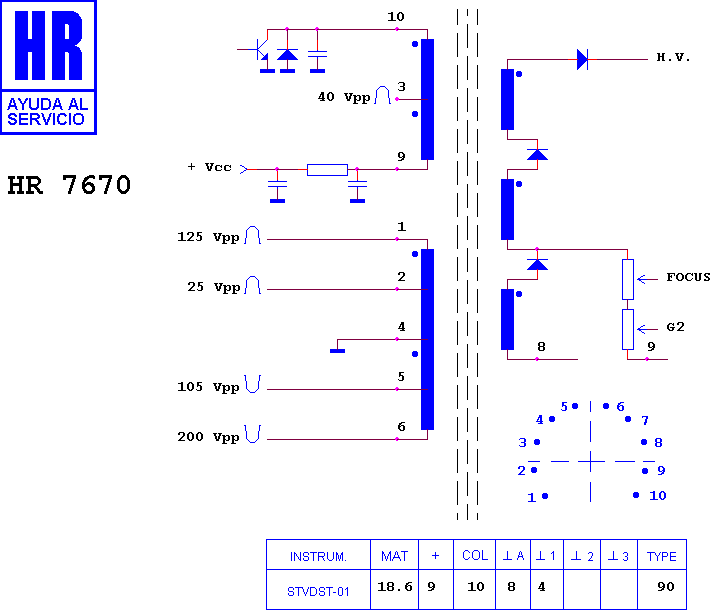

HR 7670

type ST · family 1XP1 · 18.6 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (1)

FCK 1415 JL

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8303 · HR 7657 · HR 7721 · HR 7809 · HR 7550 · HR 7723 · HR 8087 · HR 7905 · HR 7168 · HR 7183 · HR 6022 · HR 6142

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

PANAVOX 14 KWC

Search this part in the full database
