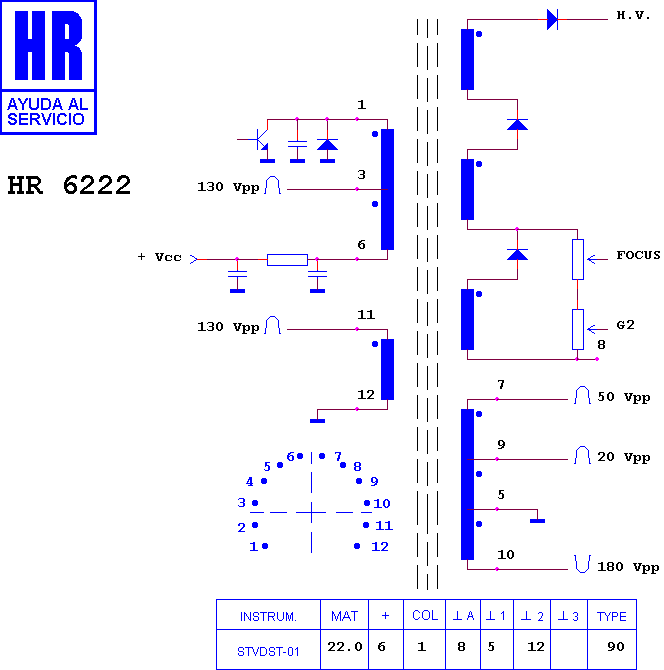

HR 6222

type ST · family 1BP1 · 22 kV maximum anode voltage · 90° deflection · 4 windings · 356 g

Manufacturer equivalents (1)

FBT 970

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6221 · HR 7719 · HR 7058 · HR 8087 · HR 7996 · HR 8207 · HR 8404 · HR 7645 · HR 8573 · HR 7597 · HR 6555 · HR 7721

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
