HR 7919

type ST · family 1NP1 · 20.6 kV maximum anode voltage · 90° deflection · 4 windings · 298 g

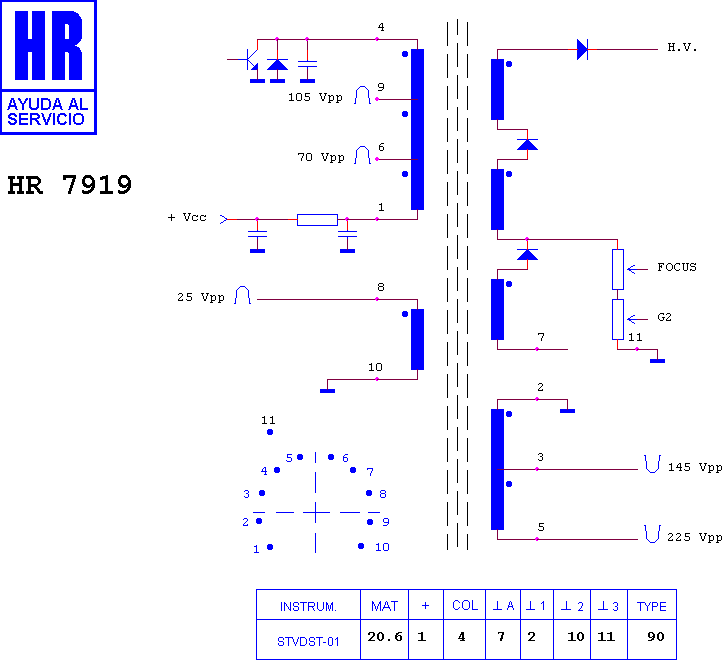

Schematic diagram for HR 7919
schematic

Manufacturer equivalents (13)

003071058 · 103460.20 · 103601.10 · 1142.1655 · 274004 · 274008 · 3071058 · 40309-23 · 40331-23 · 75.9903-0033 · FAT30522 · HR 7919 · KN30522

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7511 · HR 7711 · HR 7147 · HR 7518 · HR 7830 · HR 8922 · HR 7822 · HR 8820 · HR 7721 · HR 7854 · HR 8143 · HR 7598

Fitted to (19)

BLUE SKY BT 1411 · BUSH-MURPHY-RANK 1431 · BUSH-MURPHY-RANK 1432 · BUSH-MURPHY-RANK 1471 T · BUSH-MURPHY-RANK 1472 T · BUSH-MURPHY-RANK CTV 3407 · BUSH-MURPHY-RANK GTV 400 · BUSH-MURPHY-RANK GTV 401 · BUSH-MURPHY-RANK HIT 14 R · BUSH-MURPHY-RANK HIT 14 T · CONTINENTAL EDISON CE 3711 · EDISON EM 3711 · EDISON EM 3712 · EDISON EM 3722 · GOODMANS GTV 400 · GOODMANS GTV 401 · MINERVA EM 3712 · MINERVA MT 3712 · MINERVA MT 3721
