HR 8524

type ST · family 1XP1 · 36.3 kV maximum anode voltage · 110° deflection · 4 windings · 296 g

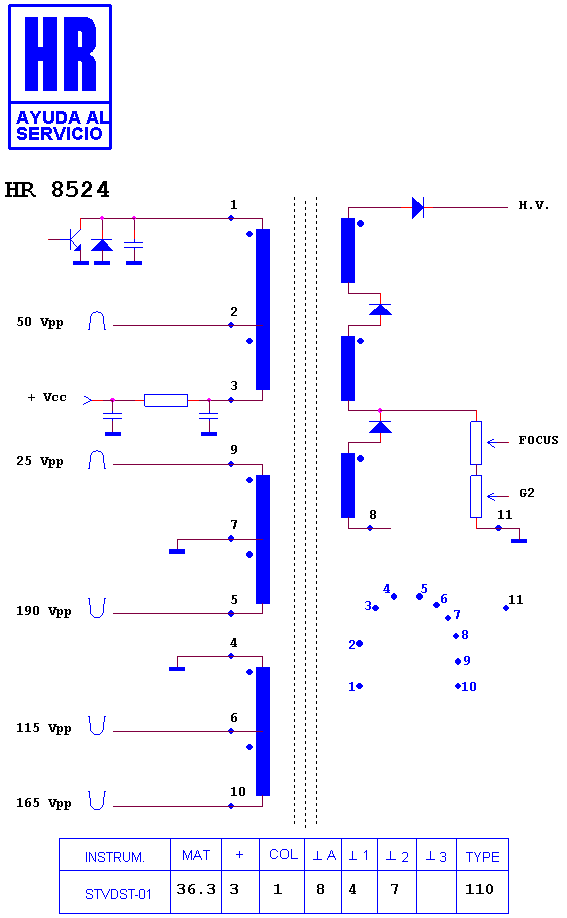

Schematic diagram for HR 8524
schematic

Manufacturer equivalents (3)

154 177 C · 154375B · 154A06C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8968 · HR 80130 · HR 8596 · HR 8707 · HR 7050 · HR 8872 · HR 6098 · HR 6096 · HR 6061 · HR 80116 · HR 7084 · HR 7676

Fitted to (5)

GOLDSTAR - LG CHASIS NC 95 A · GOLDSTAR - LG CMT 4072 · GOLDSTAR - LG CMT 9072 · GOLDSTAR - LG CMT 9842 · GOLDSTAR - LG CMT 9842 X

Search this part in the full database
