HR 7676

type ST · family 1ZP · 27.9 kV maximum anode voltage · 110° deflection · 4 windings · 342 g

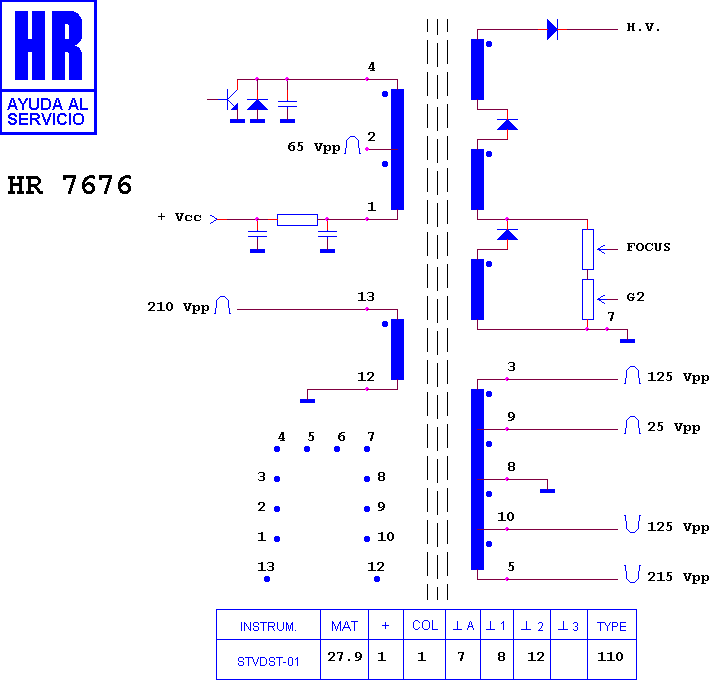

Schematic diagram for HR 7676
schematic

Manufacturer equivalents (5)

043220019 · 043220019 W · 0432200191 · 3220019 · 432200191

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7905 · HR 7697 · HR 6519 · HR 80108 · HR 6603 · HR 80051 · HR 8524 · HR 8814 · HR 7700 · HR 7955 · HR 80059 · HR 6372

Fitted to (2)

BROOKSONIC 5463 CTC · BROOKSONIC CTVG 5463 CTC
