HR 80108

44.4 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

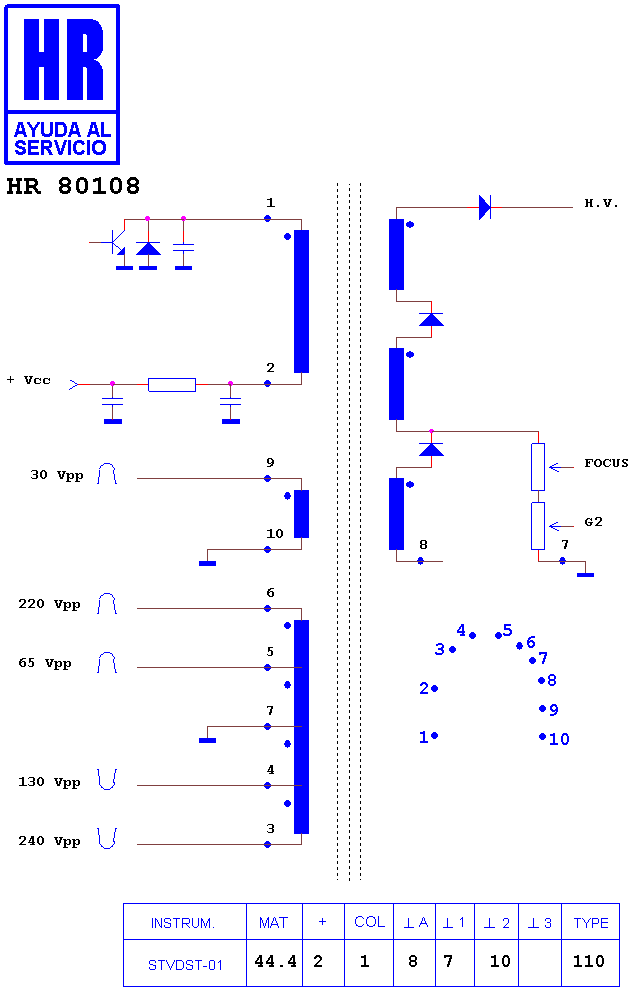

Schematic diagram for HR 80108
schematic (archived)

Manufacturer equivalents (2)

334P25901 · KFT3AB126C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80130 · HR 80059 · HR 8814 · HR 7831 · HR 7700 · HR 80051 · HR 80116 · HR 8921 · HR 8766 · HR 7694 · HR 7911 · HR 80081

Fitted to (4)

MITSUBISHI 2009 · MITSUBISHI MONITOR · MITSUBISHI TC 1409 · MITSUBISHI TC 2009
