HR 7911

type ST · family 1YP · 25.5 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

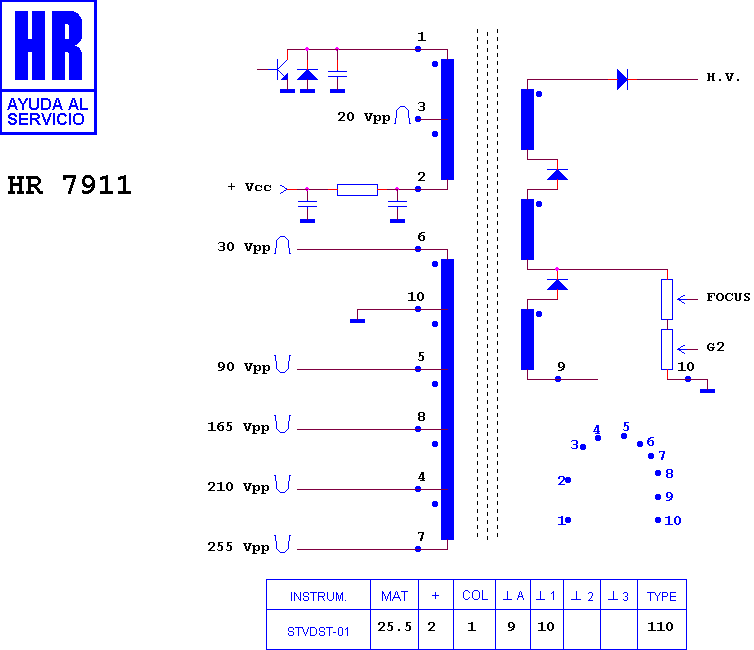

Schematic diagram for HR 7911
schematic

Manufacturer equivalents (4)

CE 41479-00 B · CE 41479-00 C · CE 41479-00 C KD · T 551 (BY11)

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7700 · HR 8473 · HR 7949 · HR 80116 · HR 8714 · HR 80059 · HR 80108 · HR 8833 · HR 7699 · HR 7955 · HR 8921 · HR 6603

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (14)

JVC AV-S 250 ET · JVC AVN 280 · JVC AVN 280 EKT · JVC AVS 250 · JVC AVS 250 ET · JVC AVS 250 IT · JVC AVS 250 SNT · JVC AVS 280 · JVC AVS 280 IT · JVC AVS 280 SNT · JVC CHASIS BY II · JVC CS 2180 EK · JVC CS 2180 S · JVC CS 2181 ST
