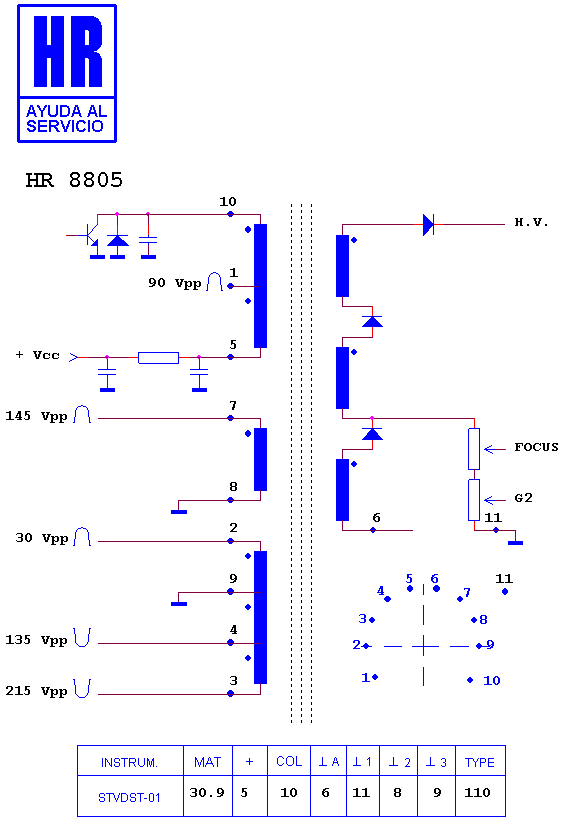

HR 8805

type ST · family 1XP1 · 30.9 kV maximum anode voltage · 110° deflection · 4 windings · 256 g

Manufacturer equivalents (1)

FCK 14 A 022

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7949 · HR 8220 · HR 8251 · HR 7892 · HR 7717 · HR 7697 · HR 7905 · HR 8780 · HR 80021 · HR 8867 · HR 8864 · HR 6152

Fitted to (1)

EMERSON TC 1393

Search this part in the full database
