HR 8220

type ST · family 1YP · 45.6 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

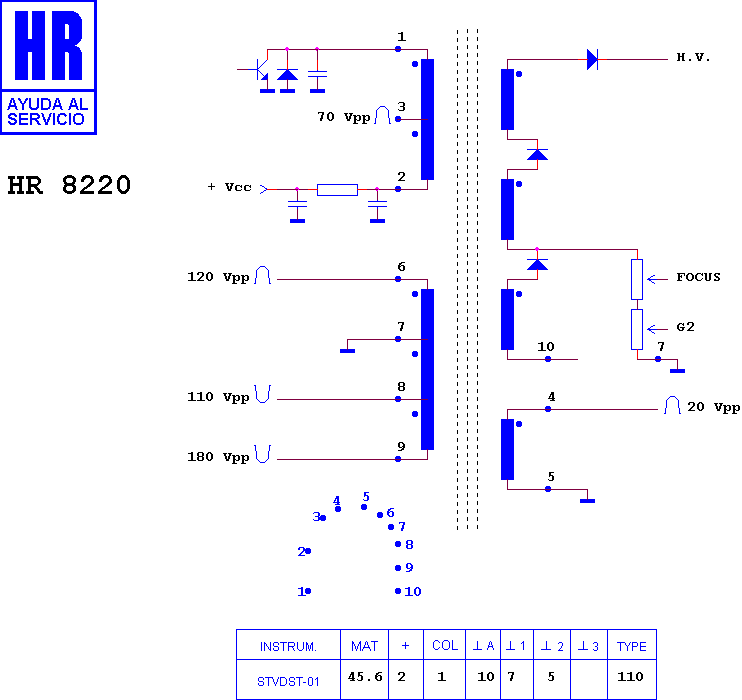

Schematic diagram for HR 8220
schematic

Manufacturer equivalents (8)

1-453-268-11 · 1-453-268-21 · 8-598-998-00 · 8-598-998-03 · NX 4005//X · NX 4005/X4J4 · NX4005 · NXA2609

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7949 · HR 8833 · HR 8921 · HR 80116 · HR 8596 · HR 7084 · HR 80058 · HR 80138 · HR 8966 · HR 7717 · HR 8131 · HR 8860

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

SONY KV 27 V 40 · SONY KV 27 V 45 · SONY KV 27 V 67 · SONY KV 29 T 75 · SONY KV 29 T 80 · SONY KV 29 VL 40 · SONY KV 29 VL 65 · SONY KV 29 VL 65 C · SONY KV 29 VL 85 · SONY KV 29 VL 95 · SONY KV 29 XL 42 T
