HR 80058

25.5 kV maximum anode voltage · 110° deflection · 4 windings · 403 g

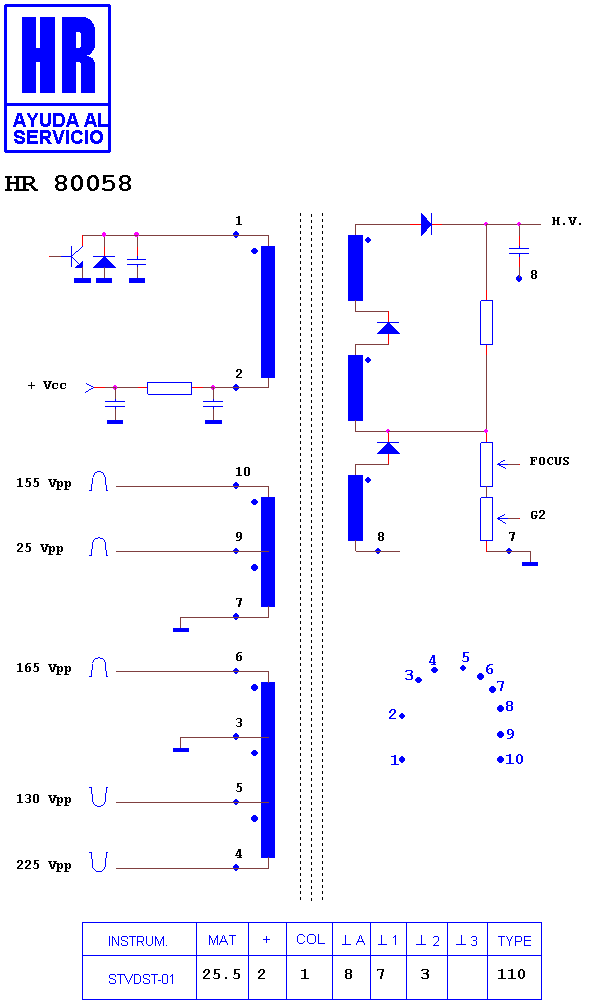

Schematic diagram for HR 80058
schematic (archived)

Manufacturer equivalents (3)

053X064-1001 · 49-0812-00 · 53X0641-001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8473 · HR 7949 · HR 7699 · HR 8893 · HR 8131 · HR 8714 · HR 8220 · HR 7717 · HR 8780 · HR 8894 · HR 8212 · HR 5739

Fitted to (10)

WELLS GARDNER 13 K 7201 · WELLS GARDNER 13 K 7201 · WELLS GARDNER 16 K 7201 · WELLS GARDNER 16 K 7201 · WELLS GARDNER K 7200 · WELLS GARDNER K 7201 · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR

Search this part in the full database
