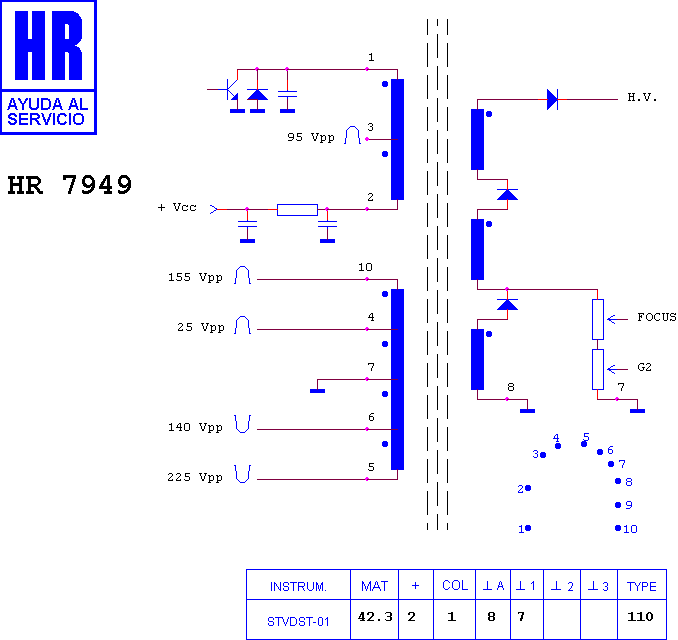

HR 7949

type ST · family 1YP · 42.3 kV maximum anode voltage · 110° deflection · 3 windings · 390 g

Manufacturer equivalents (2)

DOK 8850 · MSU-1FPW51

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8220 · HR 8294 · HR 80122 · HR 80057 · HR 80059 · HR 80042 · HR 80058 · HR 7955 · HR 8921 · HR 8596 · HR 7892 · HR 7717

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

AIKO AT 2800 R · TEC 7082 SV · YOKO CTV 2066 SL · YOKO CTV 2833 SLT
