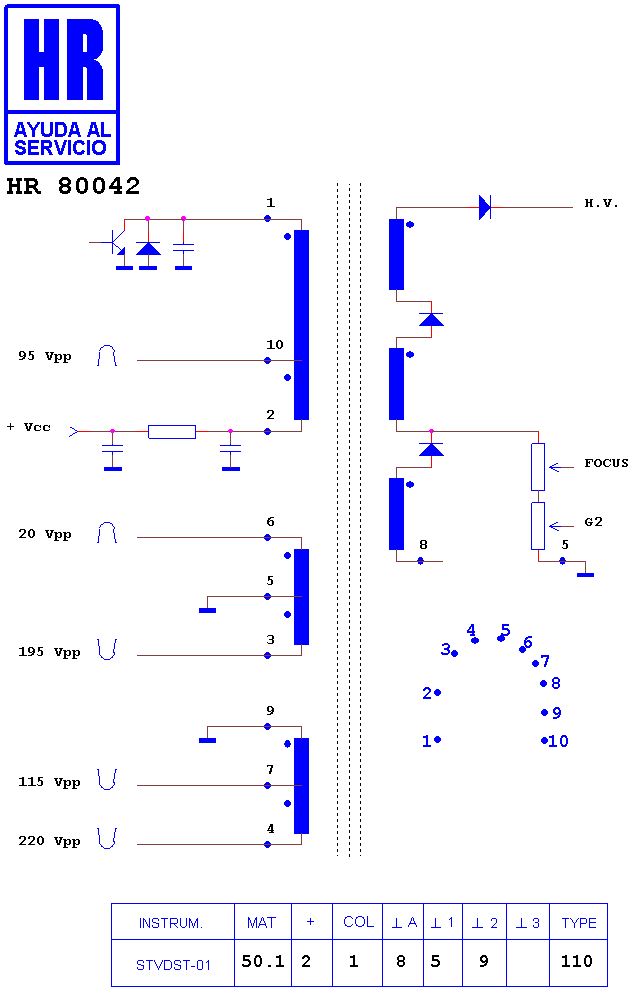

HR 80042

type ST · family 1YP · 50.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (1)

ZTFN 65001 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7955 · HR 7949 · HR 6701 · HR 6144 · HR 8815 · HR 6058 · HR 80059 · HR 80142 · HR 8506 · HR 80063 · HR 7700 · HR 8294

Fitted to (6)

PANASONIC - MATSUSHITA CHASIS EURO 10 · PANASONIC - MATSUSHITA TX 28 PS 1 F · PANASONIC - MATSUSHITA TX 29 PS 1 D · PANASONIC - MATSUSHITA TX 29 PS 1 F · PANASONIC - MATSUSHITA TX 29 PS 1 P · PANASONIC - MATSUSHITA TX 29 PS 1 P/B
