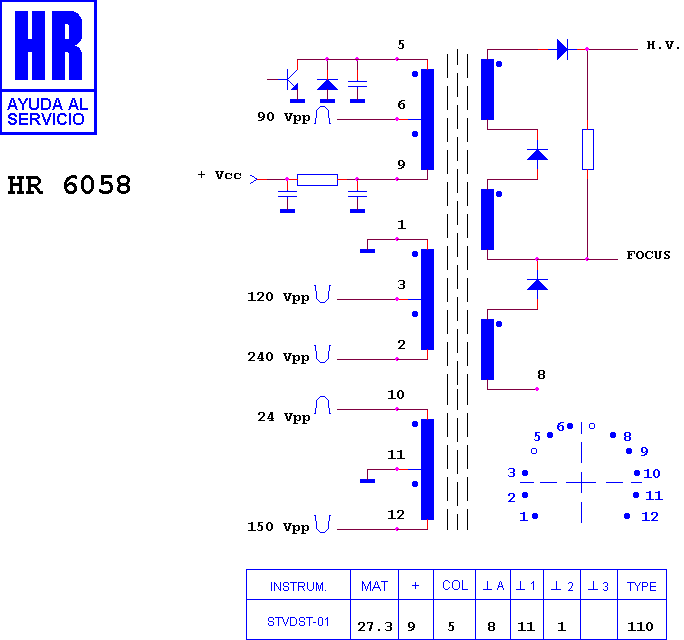

HR 6058

type ST · family 1BS3 · 27.3 kV maximum anode voltage · 110° deflection · 2 windings · 370 g

Manufacturer equivalents (1)

D 041/37

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6144 · HR 6145 · HR 7892 · HR 8838 · HR 7754 · HR 8860 · HR 80122 · HR 80057 · HR 8520 · HR 80126 · HR 8888 · HR 7949
