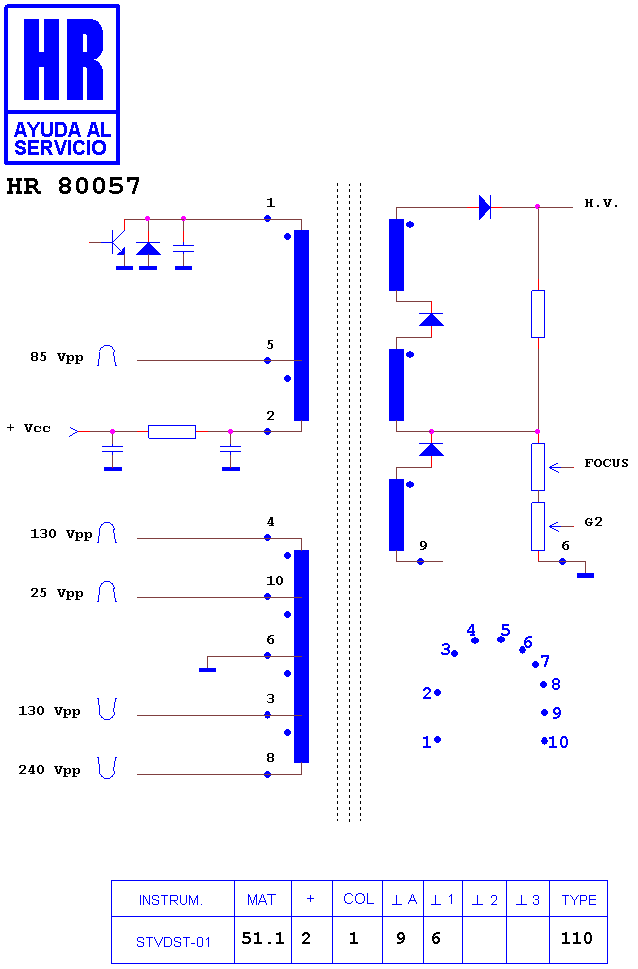

HR 80057

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

FFA 97031 L

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8503 · HR 80059 · HR 80125 · HR 8433 · HR 80122 · HR 80126 · HR 8520 · HR 8888 · HR 8801 · HR 8294 · HR 8596 · HR 80081

Fitted to (1)

TOSHIBA TS 2921
