HR 8503

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

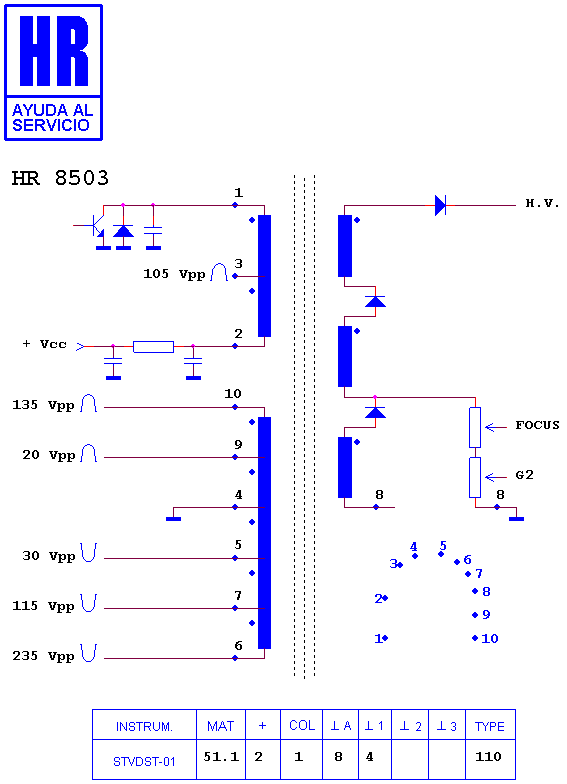

Schematic diagram for HR 8503
schematic

Manufacturer equivalents (2)

23236254 · TFB 4100 AD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8433 · HR 80057 · HR 8418 · HR 8412 · HR 8380 · HR 8833 · HR 7754 · HR 80138 · HR 8294 · HR 80122 · HR 8193 · HR 8966

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

SEMP TOSHIBA TV 2985 · TOSHIBA CE 27 C 10 · TOSHIBA CF 2767 A · TOSHIBA CHASIS TAC 9163 · TOSHIBA SX 2779 K · TOSHIBA TV 2985 · TOSHIBA TV 2985 S

Search this part in the full database
