HR 80021

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

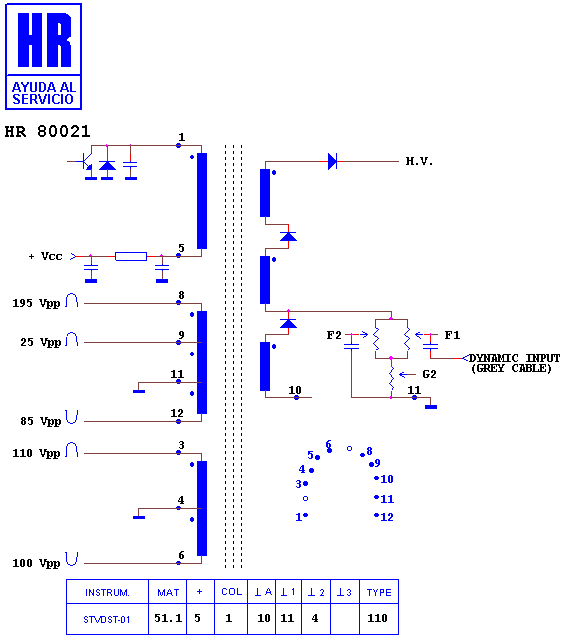

Schematic diagram for HR 80021
schematic (archived)

Manufacturer equivalents (8)

1392.3001 · 1392.3001B · 1392.3005 · 1392.3005A · 242253100072 · 310430820941 · 53100072 · HR 80021

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8867 · HR 8864 · HR 80040 · HR 8885 · HR 8702 · HR 8866 · HR 8988 · HR 8132 · HR 8503 · HR 8433 · HR 80057 · HR 8886

Fitted to (9)

PHILIPS 32 PW 9308 · PHILIPS 32 PW 9308/05 · PHILIPS 32 PW 9308/12 · PHILIPS 32 PW 9309 · PHILIPS 32 PW 9309/12 · PHILIPS 32 PW 9560 · PHILIPS 36 PW 9308 · PHILIPS 36 PW 9308/05 · PHILIPS 36 PW 9308/12
