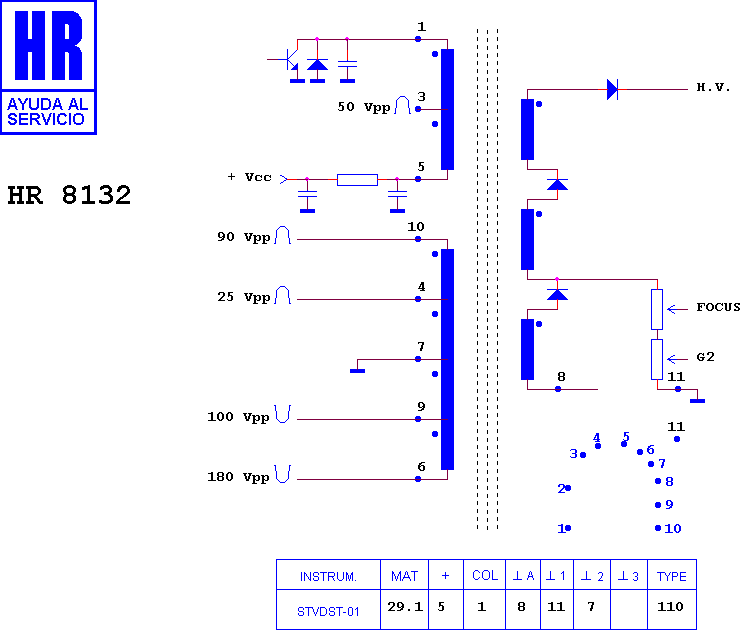

HR 8132

type ST · family 1XP1 · 29.1 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

154 177 P

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80021 · HR 8867 · HR 8864 · HR 8885 · HR 8831 · HR 80138 · HR 8596 · HR 7905 · HR 8801 · HR 8886 · HR 80126 · HR 7697

Fitted to (2)

CITIZEN JCTV 3236 · SYMPHONIC ST 19 CC
