HR 8867

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

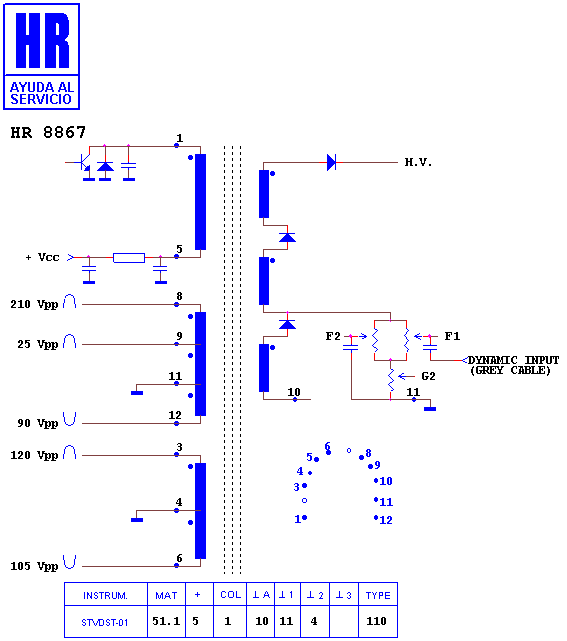

Schematic diagram for HR 8867
schematic (archived)

Manufacturer equivalents (8)

1392.9005 · 1392.9005A · 1392.9005B · 1392.9005C · 30820521 · 310430820521 · 820400075241 · HR 8867

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8864 · HR 80021 · HR 80040 · HR 8885 · HR 8702 · HR 8866 · HR 8988 · HR 8132 · HR 8503 · HR 8433 · HR 80057 · HR 8217

Fitted to (13)

PHILIPS 28 PW 9527 C · PHILIPS 32 PW 9308 · PHILIPS 32 PW 9308/05 · PHILIPS 32 PW 9308/12 · PHILIPS 32 PW 9527 · PHILIPS 32 PW 9527/05 · PHILIPS 32 PW 9527/12 · PHILIPS 36 PW 9528 · PHILIPS 36 PW 9528/05 · PHILIPS CHASIS EM 5 32 · PHILIPS CHASIS EM 5 E · PHILIPS CHASIS EM 5.1 E · PHILIPS CHASIS EM 5.1 E AA
