HR 8433

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

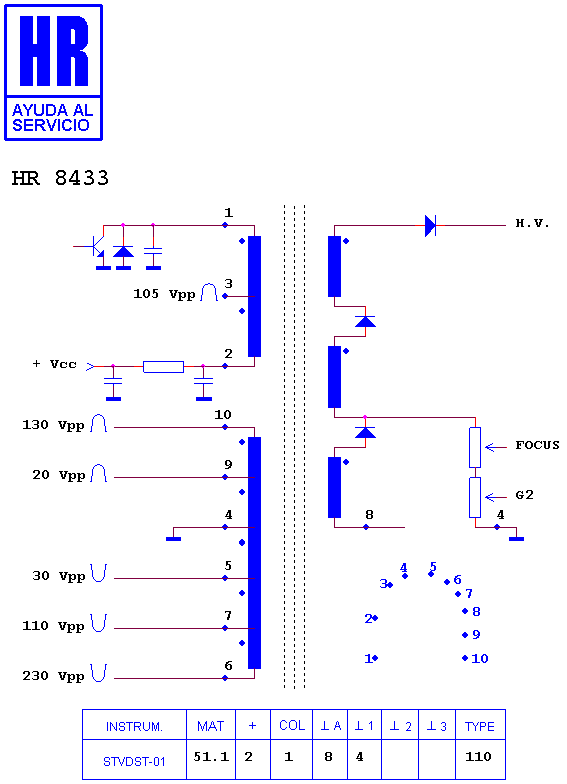

Schematic diagram for HR 8433
schematic

Manufacturer equivalents (2)

23236252 · TFB 4099 AD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8503 · HR 80057 · HR 8418 · HR 8412 · HR 8380 · HR 7754 · HR 8833 · HR 80138 · HR 8193 · HR 80122 · HR 8294 · HR 8966

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

SEMP TOSHIBA TVC 3064 · SEMP TOSHIBA TVC 3485 P · TOSHIBA 3064 · TOSHIBA 3485 P · TOSHIBA CX 32 D 60 · TOSHIBA TVC 3064 · TOSHIBA TVC 3485 P
