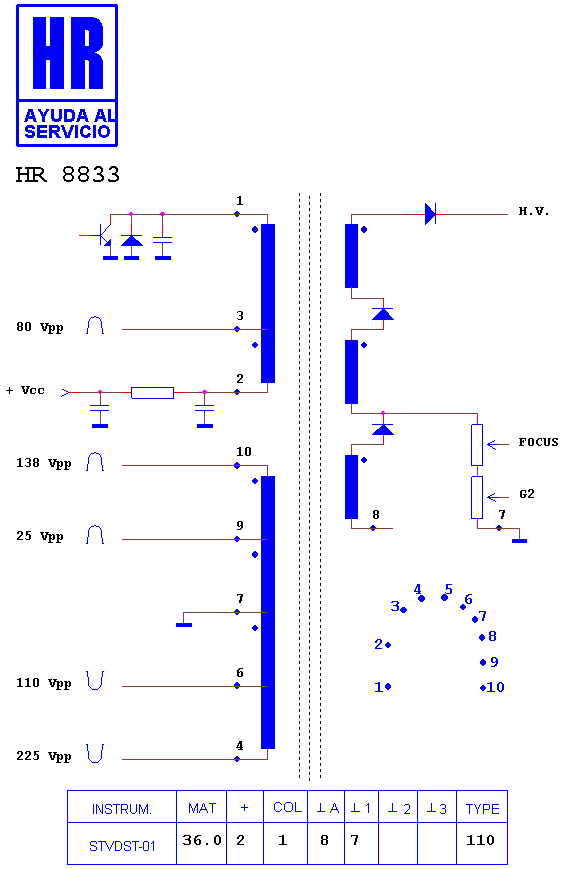

HR 8833

type ST · family 1YP · 36 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (4)

047 105 380 · 47105380 · 571439001902 · BSC265620

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80122 · HR 80057 · HR 8520 · HR 8503 · HR 8888 · HR 8193 · HR 8418 · HR 80126 · HR 8596 · HR 8433 · HR 8801 · HR 8921

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

AIWA HRM 290 S · AIWA HRM 2905 · GRADIENTE HRM 290 S · GRADIENTE HRM 2905 · NEC FS 6330 · NEC FS 6390 · NEC FS 6395
