HR 8193

type ST · family 1VP · 40.6 kV maximum anode voltage · 110° deflection · 4 windings · 368 g

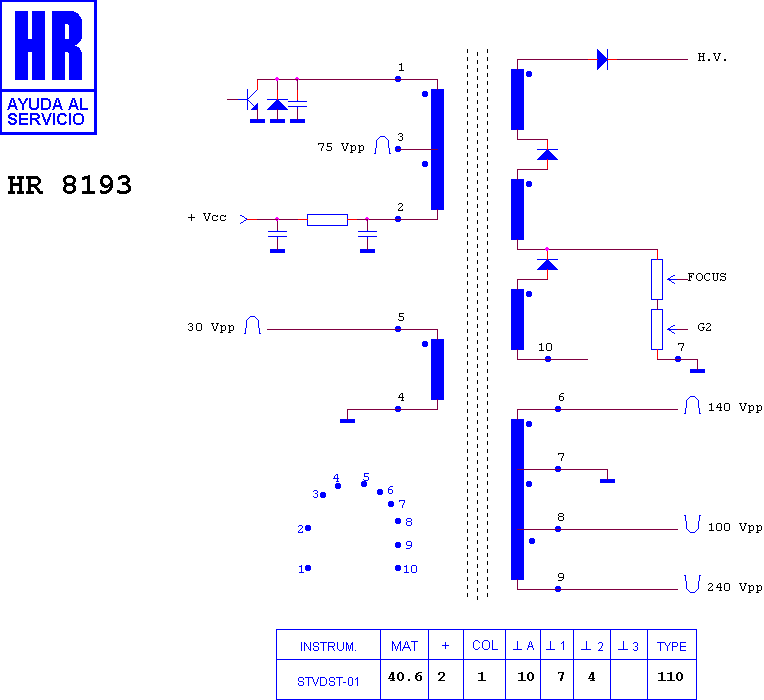

Schematic diagram for HR 8193
schematic

Manufacturer equivalents (6)

1-439-207-00 · 1-439-207-11 · 1-453-207-00 · 1-453-207-11 · 8-598-969-00 · NX 2609/X4C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7329 · HR 8888 · HR 8418 · HR 8412 · HR 8503 · HR 8684 · HR 8433 · HR 80126 · HR 80125 · HR 80057 · HR 8275 · HR 80122

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

SONY KV 2159 · SONY KV 27 S 35 · SONY KV 2959 · SONY KV 2970 · SONY KV 2970 T · SONY KV 32 S 20 · SONY KV 32 S 25 · SONY KV 3470 · SONY KV 3470 T
