HR 80138

30 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

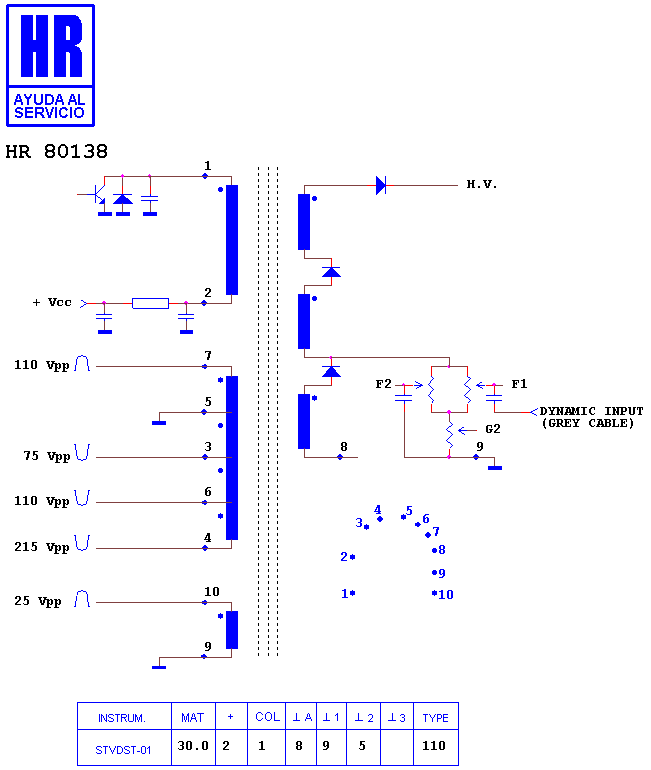

Schematic diagram for HR 80138
schematic (archived)

Manufacturer equivalents (3)

13822381 · 312813822381 · OV2076/22381

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80122 · HR 8380 · HR 80057 · HR 8966 · HR 8833 · HR 8520 · HR 8320 · HR 80126 · HR 8888 · HR 8860 · HR 8801 · HR 46217

Fitted to (5)

PHILIPS 32 DW 6557 · PHILIPS 32 DW 6557/05 · PHILIPS 32 PW 6516 · PHILIPS 32 PW 6516/01 · PHILIPS CHASIS A 10 E BB
