HR 46217

32.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

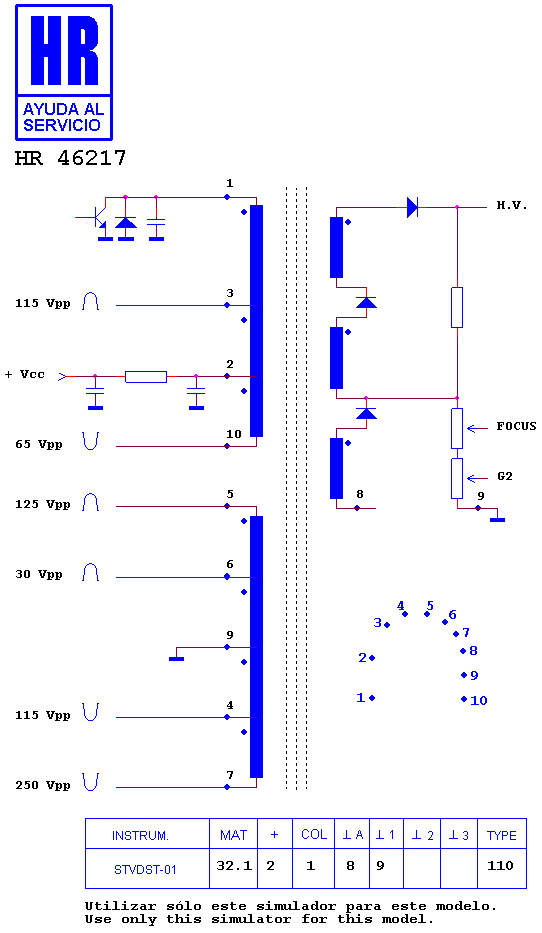

Schematic diagram for HR 46217
schematic (archived)

Manufacturer equivalents (6)

CF06291 · KFS61088 · KFS61088A · KFS61237 · LCECF06291 · MCJ29B017

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8853 · HR 8888 · HR 8294 · HR 80122 · HR 8380 · HR 80125 · HR 8860 · HR 8801 · HR 80057 · HR 8833 · HR 7754 · HR 80138

Fitted to (12)

KORTEC KTM-F 33 · KORTEC MONITOR · SHARP KTM-F 33 · SHARP MONITOR · SHARP MONITOR · SHARP SI 325 · SI KTMF-D · SI MONITOR · SI MONITOR · SI SI 325 · SI SI 325 · SI VIDEO DISPLAY MONITOR
