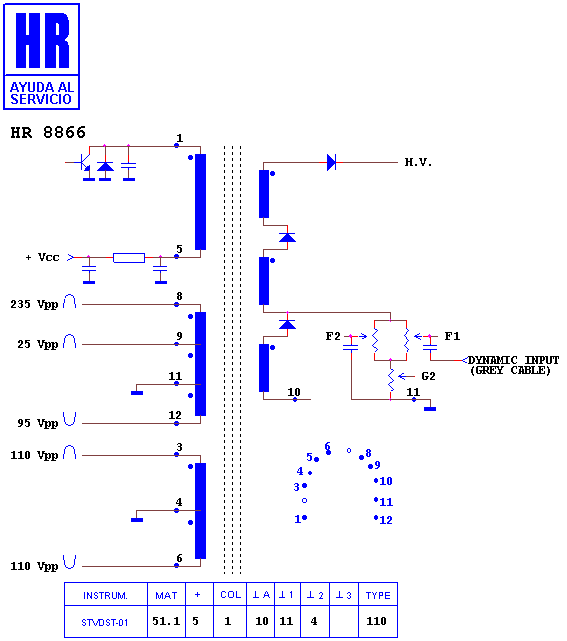

HR 8866

type ST · family 1YD · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

Manufacturer equivalents (7)

1392.9015 · 1392.9015 A · 308 20531 · 3104 308 20531 · HR 8866 · OV2076M-21651 · OV2076M-21652

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8702 · HR 80040 · HR 8864 · HR 8988 · HR 8867 · HR 80021 · HR 8885 · HR 7754 · HR 8684 · HR 80057 · HR 8862 · HR 80125

Fitted to (10)

PHILIPS 28 PW 8608 · PHILIPS 28 PW 8608/05 · PHILIPS 28 PW 8707 · PHILIPS 28 PW 8707/12 · PHILIPS 32 PW 8757 · PHILIPS 32 PW 8757/12 · PHILIPS CHASIS EM 2 E · PHILIPS CHASIS EM 2 E RF · PHILIPS CHASIS EM 2 E RF 28" · PHILIPS CHASIS EM 2 E RF 32"
