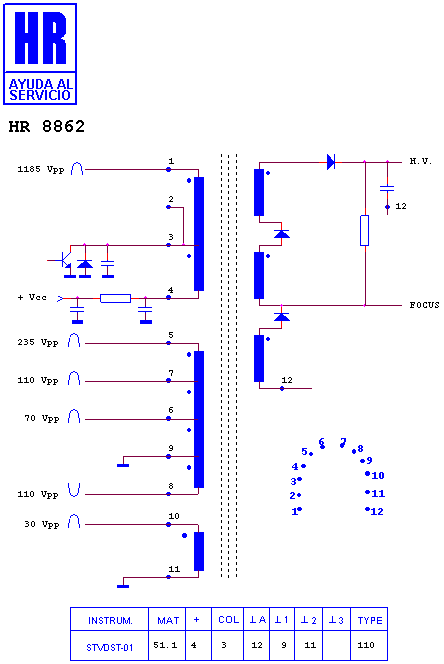

HR 8862

type ST · family 1VCS · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

Manufacturer equivalents (5)

010 063 3 · 100633 · 1372.9012 · 1372.9012 A · HR 8862

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80074 · HR 6662 · HR 8275 · HR 6702 · HR 8702 · HR 8866 · HR 8684 · HR 80125 · HR 6555 · HR 8412 · HR 6408 · HR 80040

Fitted to (1)

SCHNEIDER SCINEMA 3000

Search this part in the full database
