HR 80040

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

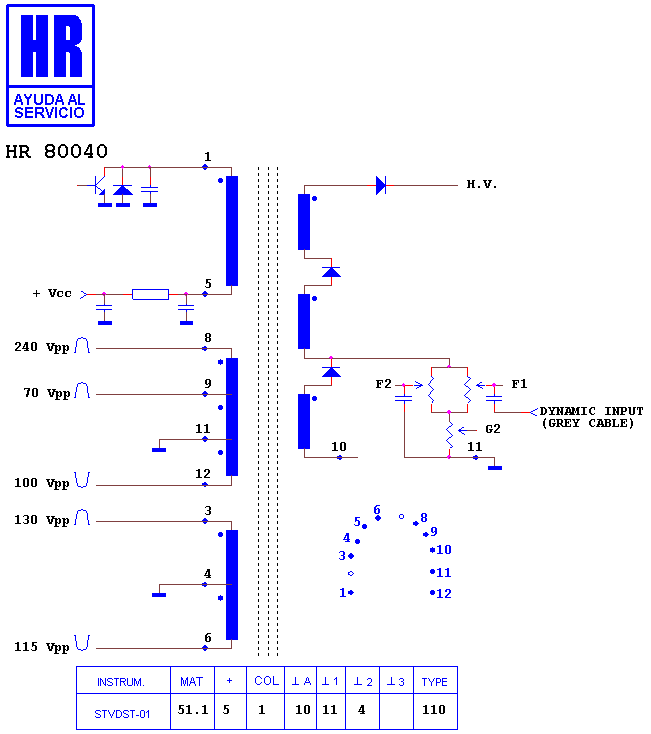

Schematic diagram for HR 80040
schematic (archived)

Manufacturer equivalents (18)

003323134 · 1392.9010 · 1392.9010A · 1392.9010B · 1392.9010C · 1392.9034 · 1392.9034A · 242253100083 · 30820501 · 30820741 · 30821031 · 310130820501 · 310430820501 · 310430820741 · 310430821031 · HR 80040 · RO490 · TR490

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8988 · HR 8867 · HR 8864 · HR 80021 · HR 8702 · HR 8866 · HR 8885 · HR 8853 · HR 80320 · HR 80057 · HR 80125 · HR 80074

Fitted to (21)

PHILIPS 32 PW 9257 · PHILIPS 32 PW 9257/12 · PHILIPS 32 PW 9527 · PHILIPS 32 PW 9527/05 · PHILIPS 32 PW 9527/12 · PHILIPS 32 PW 9528 · PHILIPS 32 PW 9528/05 · PHILIPS 32 PW 9528/12 · PHILIPS 32 PW 9528/12 R · PHILIPS 32 PW 9588 · PHILIPS 32 PW 9588/05 · PHILIPS 32 PW 9588/12 · PHILIPS 32 PW 9618 · PHILIPS 32 PW 9618/05 · PHILIPS 36 PW 9308 · PHILIPS 36 PW 9308/12 · PHILIPS 36 PW 9528 · PHILIPS 36 PW 9528/12 · PHILIPS CHASIS EM 5 E · PHILIPS CHASIS EM 5.1 E AA · PHILIPS CHASIS EM 6 E AB
