HR 6662

type SM · family 1BP1 · 26.4 kV maximum anode voltage · L° deflection · 4 windings · 380 g

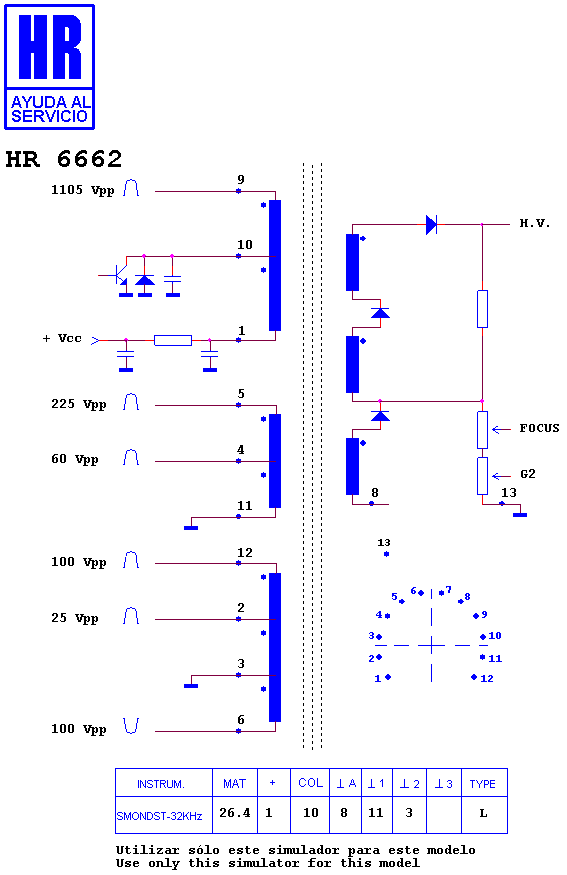

Schematic diagram for HR 6662
schematic

Manufacturer equivalents (6)

0100402 · 100402 · 1182.1507 · 1182.1507A · 1182.1507B · HR 6662

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6663 · HR 8431 · HR 6661 · HR 6668 · HR 6597 · HR 8196 · HR 8470

Fitted to (8)

DAEWOO DTW 2900 ST · MAGNUM TV 85-100 · SCHNEIDER 85 100 · SCHNEIDER CHASIS DTV 100 · SCHNEIDER DTV 100 · SCHNEIDER DTV 2900 ST · SCHNEIDER DTW 2900 ST · SCHNEIDER MAGNUM
