HR 80293

22.7 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

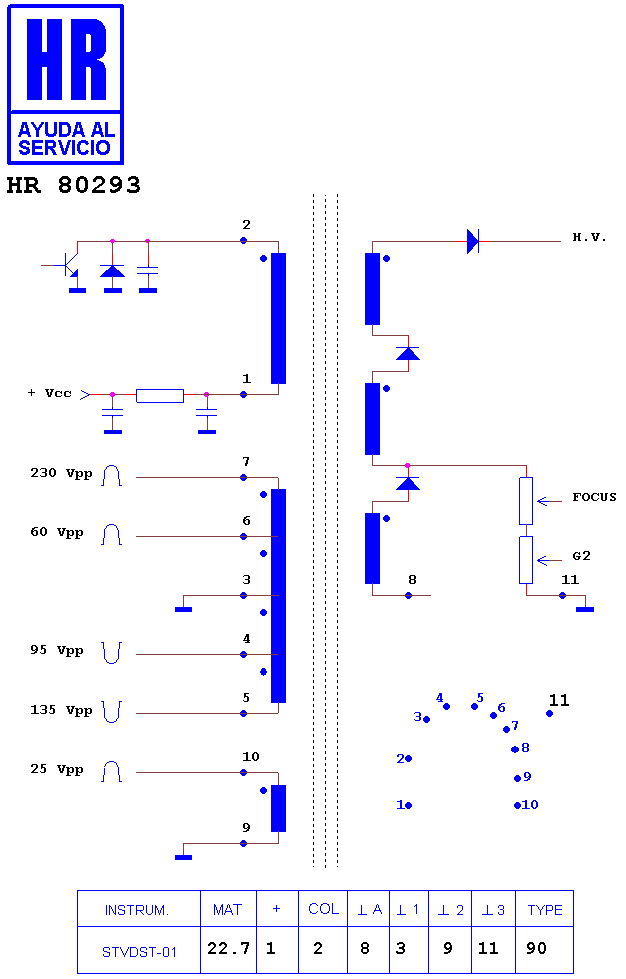

Schematic diagram for HR 80293
schematic (archived)

Manufacturer equivalents (11)

108814.80 · 1142.5170 · 13822801 · 312813822801 · 313010831130 · 313L10831130 · 313P10831130 · 313T10831130 · 40337-86 · AT2094/22801 · OV2094/2280.1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80078 · HR 7883 · HR 8186 · HR 8540 · HR 8586 · HR 7910 · HR 8263 · HR 7660 · HR 7908 · HR 7563 · HR 7997 · HR 8143

Fitted to (13)

HYPSON HY 55 NTXT · NORDMENDE 2.150 · NORDMENDE NMF · NORDMENDE NMF 2150 · SCHNEIDER STV 3800 · SINGER 15 R FLAT · SINGER 21 STEREO · SINGER S · SINGER S · SINGER S 15 R FLAT · SINGER S 21 STEREO · TECNIMAGEN 15 TXS · TECNIMAGEN CHASIS CTR-AA
