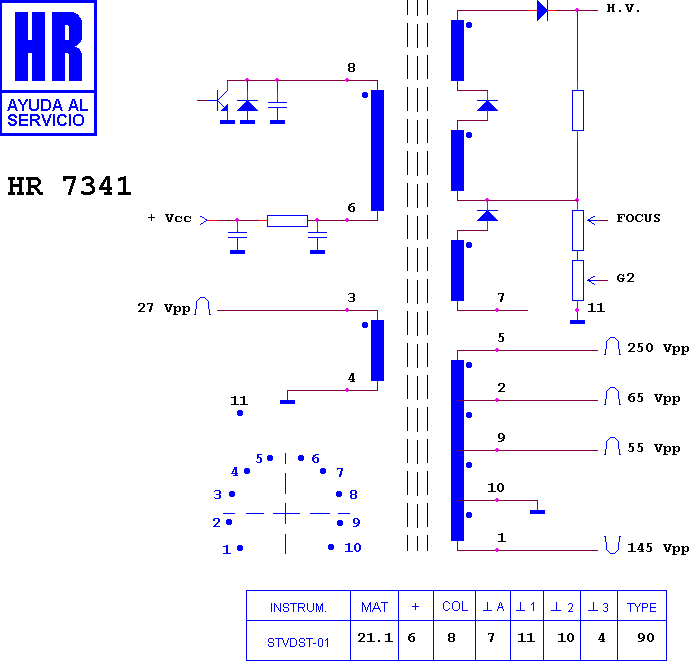

HR 7341

type ST · family 1AP1 · 21.1 kV maximum anode voltage · 90° deflection · 4 windings · 338 g

Manufacturer equivalents (1)

HR 7341-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8284 · HR 8186 · HR 7883 · HR 8752 · HR 7592 · HR 8266 · HR 8782 · HR 7910 · HR 8386 · HR 7789 · HR 7328 · HR 6308

Fitted to (1)

UNIMOR CHASIS BX 2033
