HR 8031

type ST · family 1VP · 30.6 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

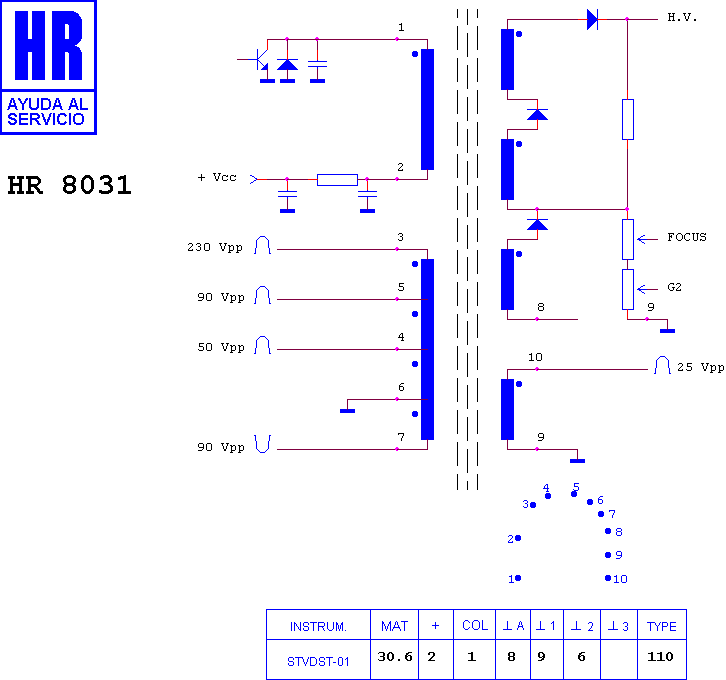

Schematic diagram for HR 8031
schematic

Manufacturer equivalents (11)

003313141 · 0100676 · 0100767 · 100767 · 1352.5027 · 1352.5027A · AFS375 · FAT30680 · HR 8031 · RO857 · TR857

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80052 · HR 7859 · HR 8282 · HR 8292 · HR 8808 · HR 8949 · HR 8684 · HR 8892 · HR 6702 · HR 6544 · HR 7856 · HR 8931

Fitted to (2)

HANSEATIC CTV 7010 · WATSON FA 7008
