HR 80052

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

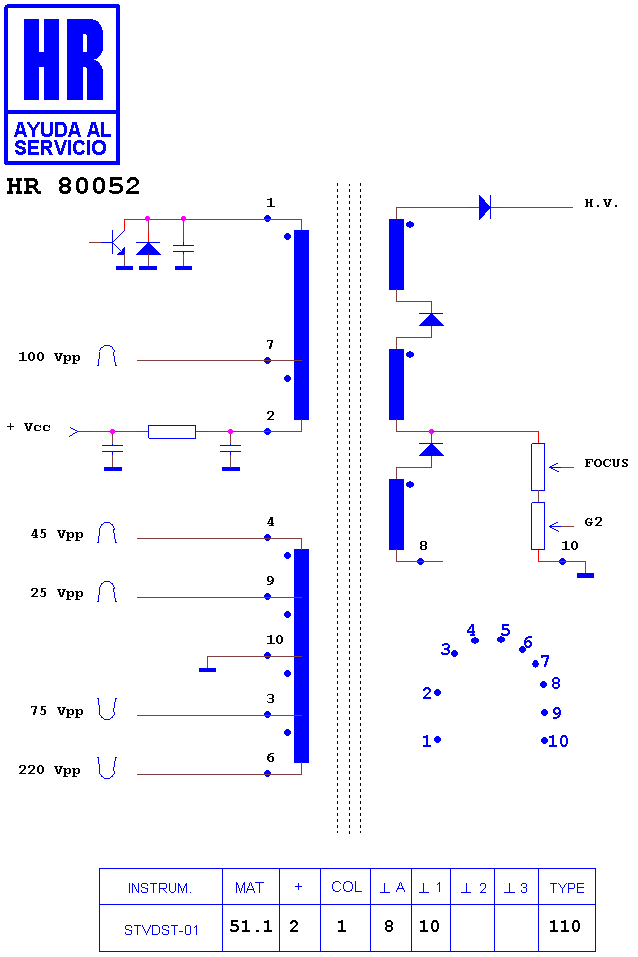

Schematic diagram for HR 80052
schematic (archived)

Manufacturer equivalents (2)

37-050119-10303 · JF0501-19103

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8949 · HR 8684 · HR 8292 · HR 8031 · HR 7859 · HR 8127 · HR 7860 · HR 8808 · HR 8892 · HR 8323 · HR 7856 · HR 6702

Fitted to (4)

MAGNAVOX 20 MS 233 S 99 · PHILIPS 20 MS 233 S 99 · PHILIPS 21 PT 6341 · PHILIPS 21 PT 6341/44
