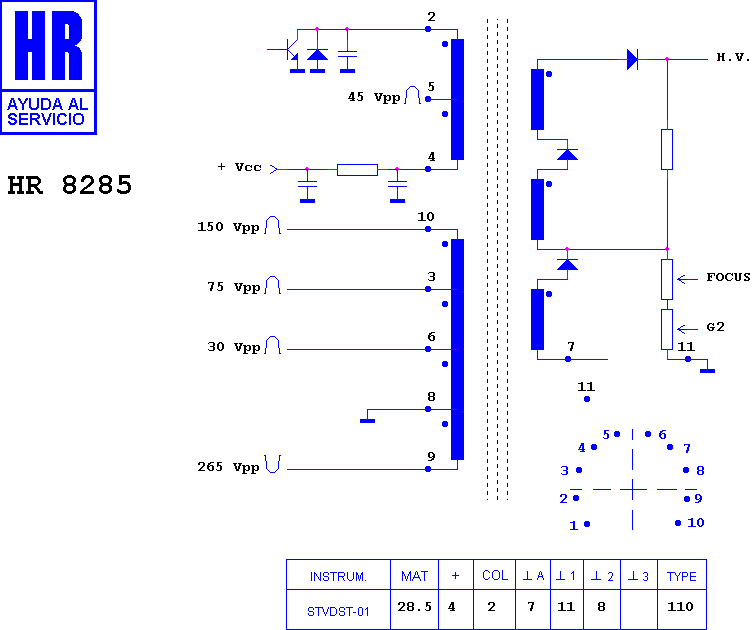

HR 8285

type ST · family 1AP1 · 28.5 kV maximum anode voltage · 110° deflection · 3 windings · 390 g

Manufacturer equivalents (1)

HR 8285

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8232 · HR 80052 · HR 8100 · HR 6219 · HR 6485 · HR 7951 · HR 8883 · HR 7683 · HR 6723 · HR 6604 · HR 8932 · HR 6121
