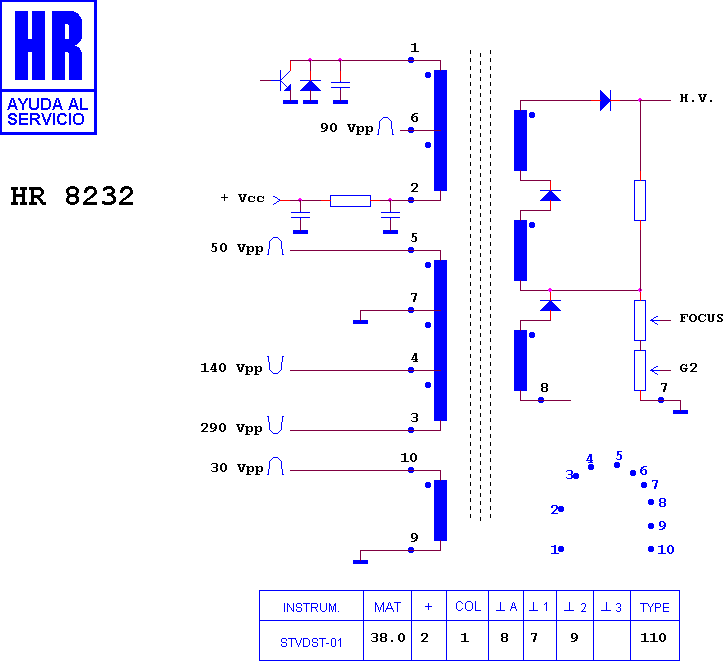

HR 8232

type ST · family 1YP · 38 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (9)

104038.30 · 1302.0020 · 1302.0020 A · 334 P 243 A 20 · 334 P 24302 · 334 P 243020 · 40327-20 · FAT30806 · HR 8232

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8949 · HR 8282 · HR 7245 · HR 8127 · HR 7341 · HR 8285 · HR 6450 · HR 6149 · HR 8883 · HR 7951 · HR 7683 · HR 6354

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

MITSUBISHI CT 28 BW 2 B · MITSUBISHI CT 28 BW 2 BD · MITSUBISHI CT 28 BW 2 C · MITSUBISHI CT 28 BW 2 CD · MITSUBISHI CT 28 BW 2 CDF
