HR 6450

type ST · family 1BP1 · 27.3 kV maximum anode voltage · 110° deflection · 3 windings · 389 g

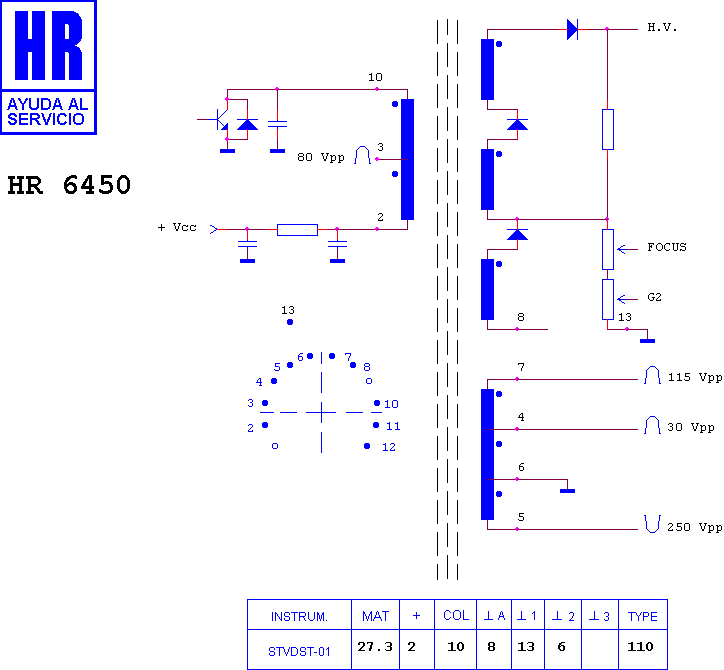

Schematic diagram for HR 6450
schematic

Manufacturer equivalents (9)

003321127 · 003341112 · 1182.0187 · 8514143 · FAT30012 · M 12-08 · RO 337 · RO 837 · TR 837

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6650 · HR 6354 · HR 7297 · HR 7296 · HR 8332 · HR 6273 · HR 8326 · HR 6272 · HR 6720 · HR 6483 · HR 7062 · HR 7683

Search this part in the full database
