HR 7779

3 windings

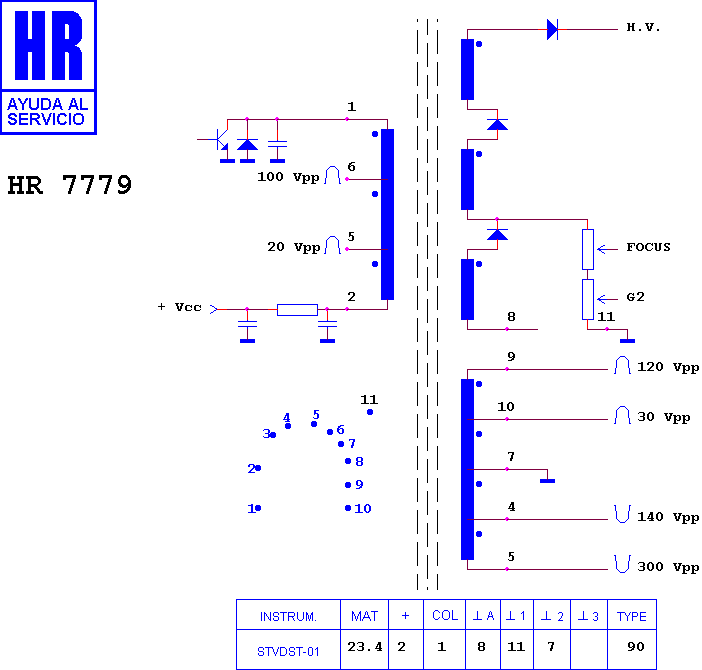

Schematic diagram for HR 7779
schematic

Manufacturer equivalents (1)

FCM 20 B 043

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7479 · HR 8256 · HR 7435 · HR 8843 · HR 6450 · HR 7504 · HR 8345 · HR 8100 · HR 8694 · HR 8272 · HR 80139 · HR 8254

Fitted to (4)

ORION CHASIS A 52005 A 070 · ORION TC 5223 A · PHILCO PVTR 2400 · PHILCO PVTR 2410
