HR 7504

type ST · family 1NP1 · 18.6 kV maximum anode voltage · 90° deflection · 4 windings · 262 g

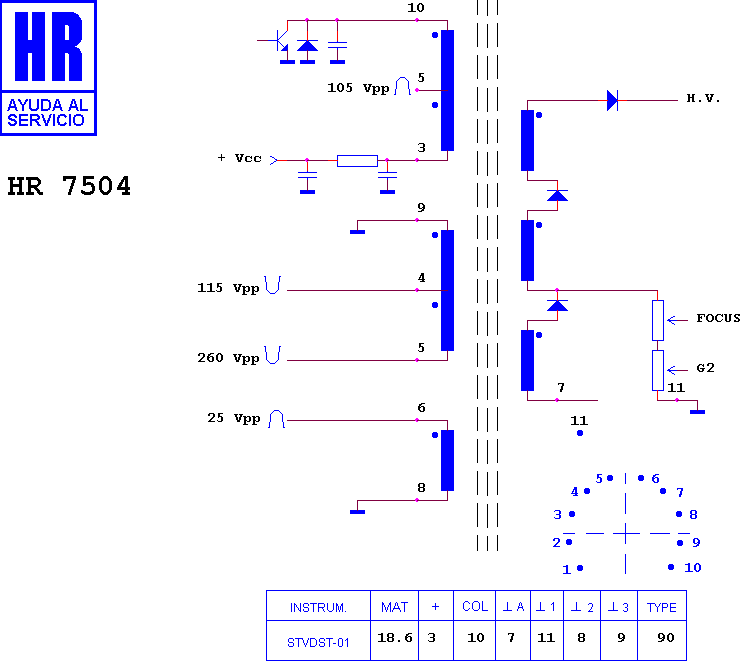

Schematic diagram for HR 7504
schematic

Manufacturer equivalents (4)

HR 7504 · PET 19-24 · TDKS 54 · TKS 54

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7608 · HR 8307 · HR 7583 · HR 7782 · HR 7652 · HR 6122 · HR 6406 · HR 7779 · HR 7479 · HR 8137 · HR 8254 · HR 8667

Fitted to (4)

PROVISION 1410 · PROVISION CTV 2021 · PROVISION ITV 2021 · PROVISION L 2103

Search this part in the full database
