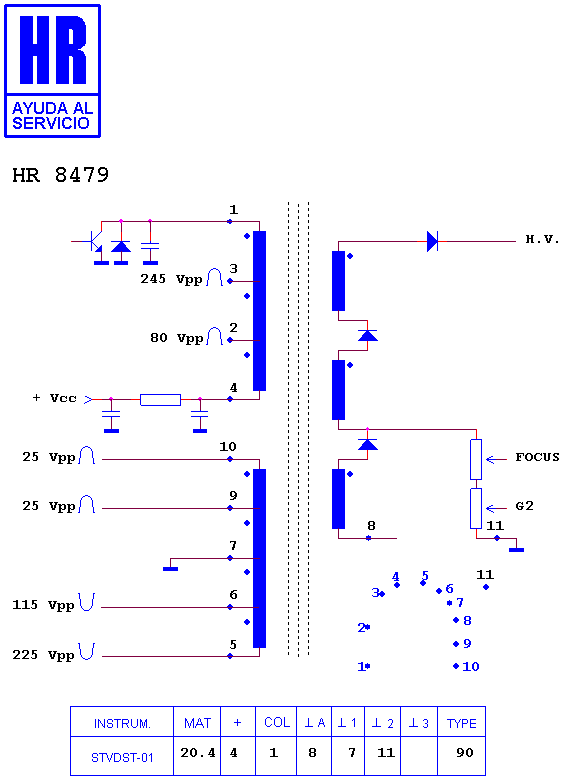

HR 8479

type ST · family 1XP1 · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

Manufacturer equivalents (1)

154 106 E

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7736 · HR 7688 · HR 8843 · HR 7600 · HR 7634 · HR 6122 · HR 8272 · HR 8057 · HR 8321 · HR 7435 · HR 7652 · HR 8137
