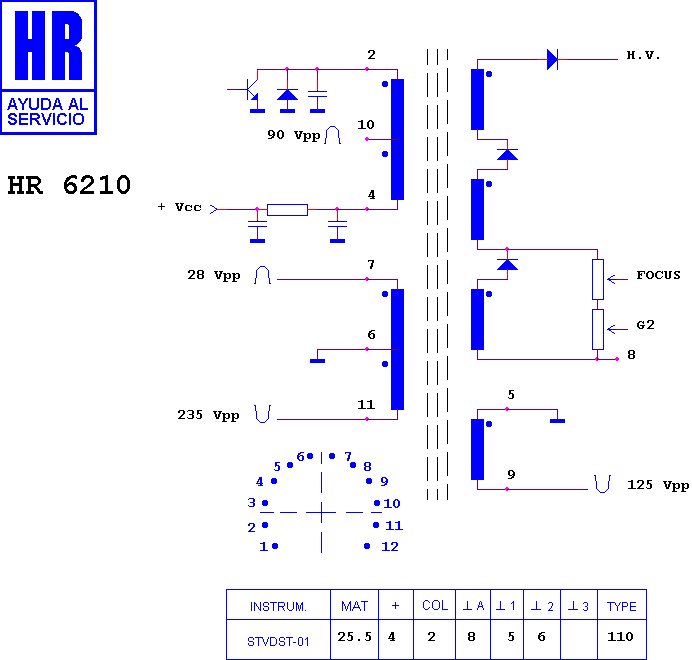

HR 6210

25.5 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7297 · HR 7296 · HR 8952 · HR 8479 · HR 8578 · HR 8326 · HR 7729 · HR 8937 · HR 7433 · HR 7414 · HR 8853 · HR 8256

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
