HR 7433

type ST · family 1XP1 · 30.6 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

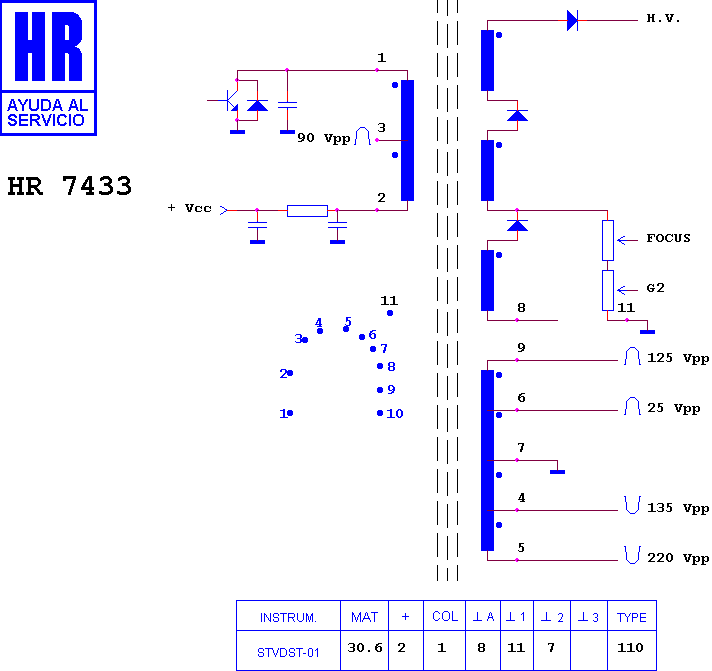

Schematic diagram for HR 7433
schematic

Manufacturer equivalents (11)

003081014 · AFS 295 · BSC 0534 B · FAT30053 · KFS 60534 A · KFS 60534 B · KFS60534 · KN30053 · ME/6408-00 · RO 077 · TR 077

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8436 · HR 8406 · HR 8937 · HR 8331 · HR 80014 · HR 8952 · HR 8578 · HR 8763 · HR 8403 · HR 8151 · HR 8215 · HR 8853

Fitted to (2)

CLATRONIC CTV 197 · CONDOR CTV 1408
