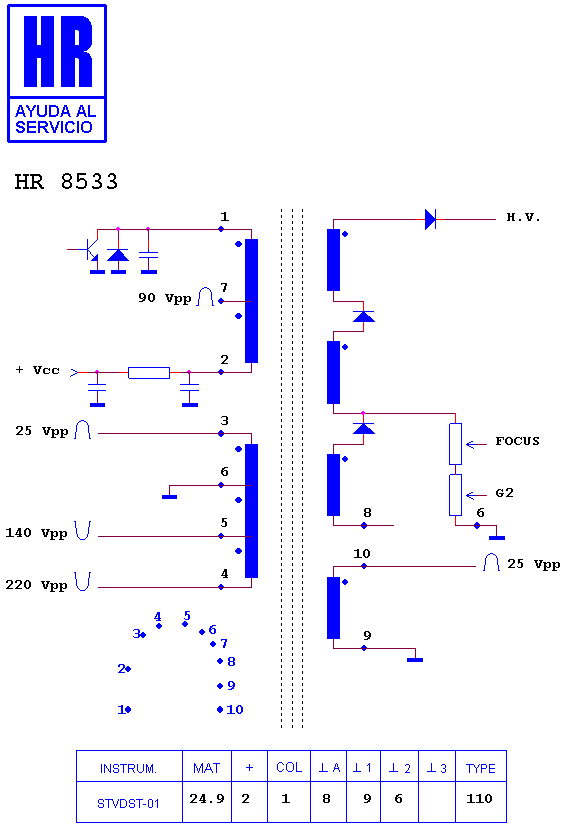

HR 8533

type ST · family 1XP1 · 24.9 kV maximum anode voltage · 110° deflection · 4 windings · 296 g

Manufacturer equivalents (2)

1142.5024 · 1352.5024

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7433 · HR 80014 · HR 8952 · HR 8578 · HR 8763 · HR 8403 · HR 8121 · HR 8151 · HR 8215 · HR 8949 · HR 8256 · HR 8346
