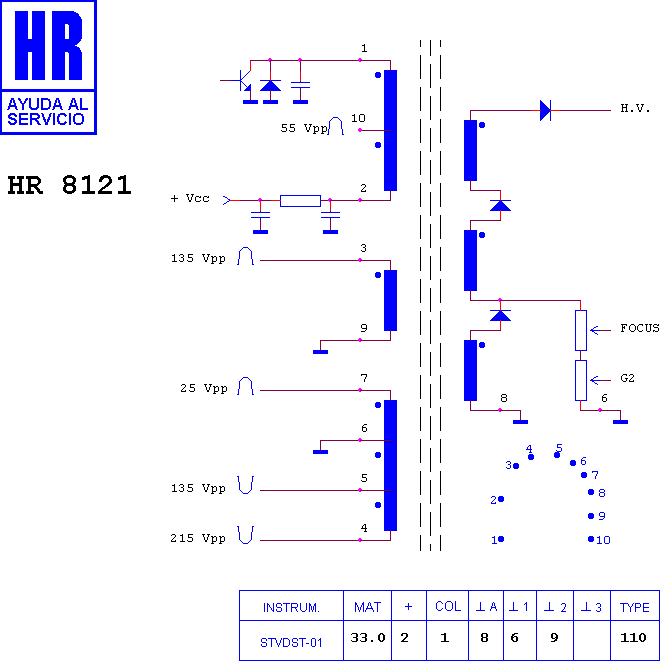

HR 8121

type ST · family 1YP · 33 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (2)

101-228003-01 · TLF 70238

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8406 · HR 8973 · HR 7802 · HR 8346 · HR 8810 · HR 80036 · HR 8555 · HR 8518 · HR 8178 · HR 8685 · HR 8215 · HR 8403

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (15)

AKAI CT 2567 · AMSTRAD COLOUR TELEVISION · AMSTRAD CTV 2804 · AMSTRAD CTV 2809 · CAMACROWN K 3828 · IRRADIO DAKOTA 28" · LAWSON LW 4028 · LUX-MAY LW 4028 · MATSUI 2897 N · ONWA 9328 · ONWA K 9328 · ONWA MONITOR · ORLINE C 228 · SAISHO 2897 M · YOKO LW 4028
