HR 8406

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

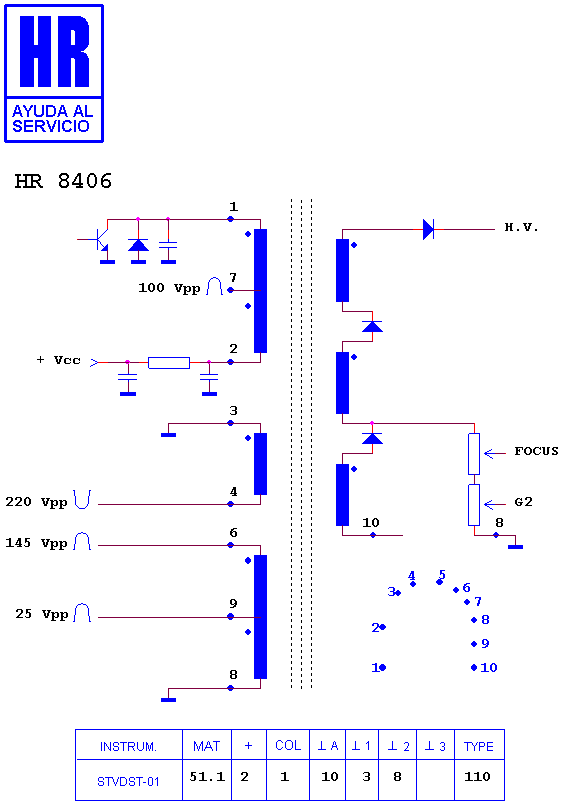

Schematic diagram for HR 8406
schematic

Manufacturer equivalents (4)

F 0037 ME · F 0037 MEZZ · F0037ME-SA · RTRNF0037MEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8403 · HR 8853 · HR 8818 · HR 6472 · HR 8533 · HR 7433 · HR 8291 · HR 7802 · HR 8331 · HR 80014 · HR 8436 · HR 8346
