HR 8403

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

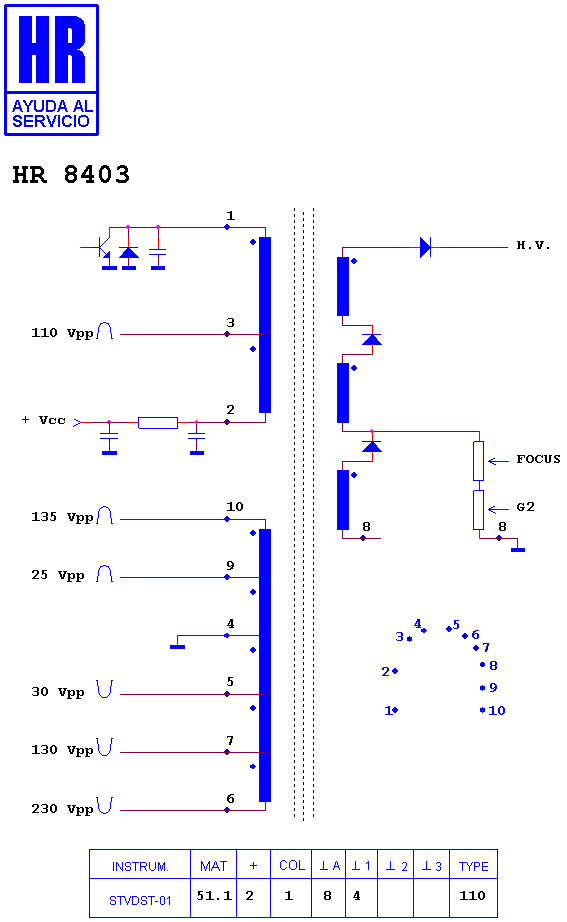

Schematic diagram for HR 8403
schematic

Manufacturer equivalents (3)

23236200 · TFB 4089 · TFB 4089 AD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8406 · HR 8949 · HR 8973 · HR 8333 · HR 8331 · HR 8952 · HR 7802 · HR 8937 · HR 8323 · HR 8291 · HR 8436 · HR 6472

Fitted to (5)

TOSHIBA CF 1765 K · TOSHIBA CF 2655 R · TOSHIBA CF 2666 A · TOSHIBA CHASIS TAC 9100 · TOSHIBA TAC 9100
