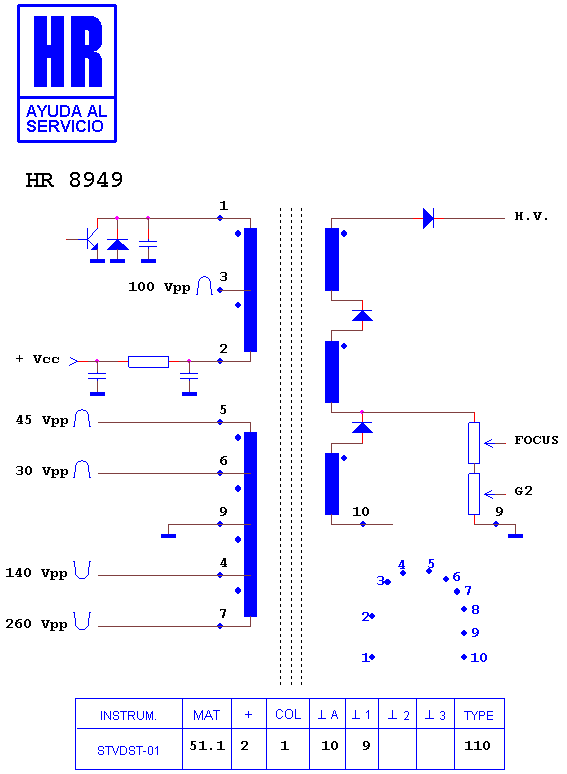

HR 8949

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

CJ 28069-00 CJ 1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80052 · HR 8403 · HR 8232 · HR 8438 · HR 7859 · HR 8333 · HR 8937 · HR 8292 · HR 8808 · HR 8533 · HR 8323 · HR 7245

Fitted to (2)

JVC AV 25 MEX-HK · JVC AVG 25 MX
