HR 8438

type ST · family 1VP · 32.1 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

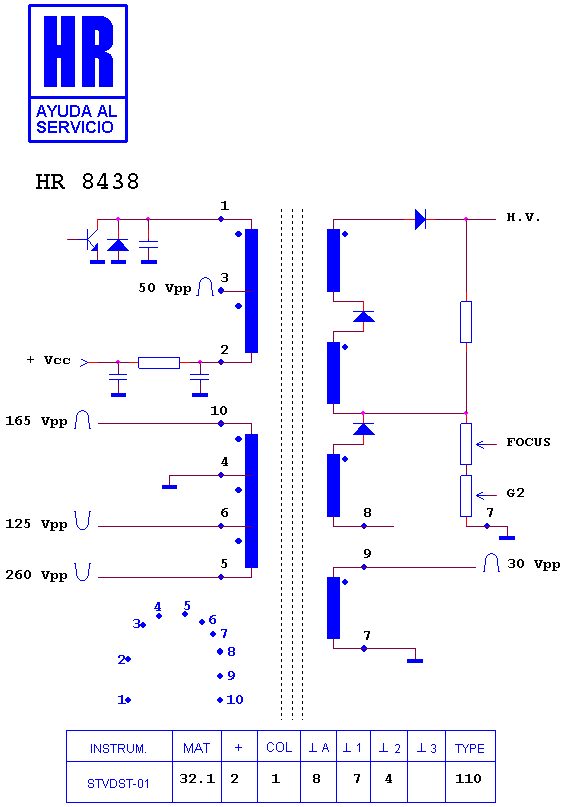

Schematic diagram for HR 8438
schematic

Manufacturer equivalents (11)

BSC24-152811 · BSC24-3380 · BSC24-4487 · C1-226214A · C1-226215A · C1226230 · C1226249 · FSV 20 B 013 · MCG21A26 · PET 23-11 · PET 23-11 N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80081 · HR 8808 · HR 8949 · HR 8892 · HR 8331 · HR 8333 · HR 8403 · HR 7859 · HR 8833 · HR 8596 · HR 8149 · HR 8766

Fitted to (1)

ADN 254
