HR 7221

type ST · family 1AP1 · 26.6 kV maximum anode voltage · 90° deflection · 4 windings · 347 g

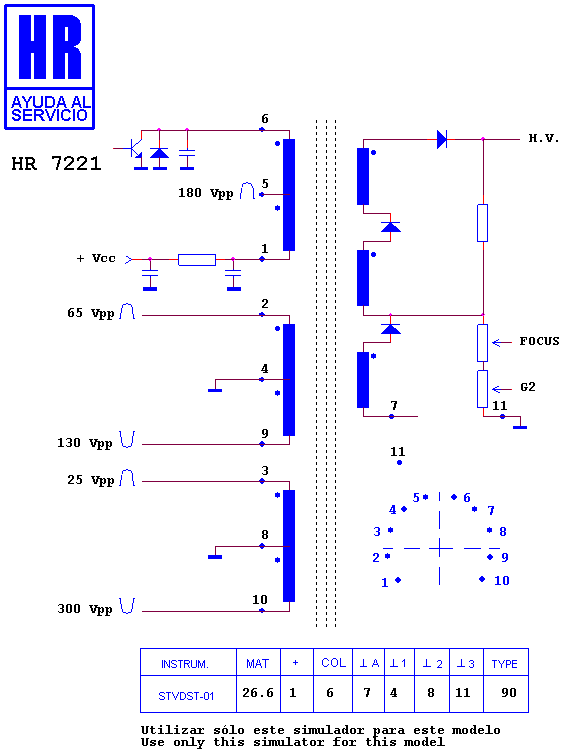

Schematic diagram for HR 7221
schematic

Manufacturer equivalents (6)

1162.0151 · 1172.0188 · 707955801 · 707955901 · MAT33469 · ME/0334-69

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7668 · HR 8349 · HR 7023 · HR 7550 · HR 7149 · HR 7121 · HR 7474 · HR 7148 · HR 7609 · HR 8781 · HR 7338 · HR 7259

Fitted to (8)

FORMENTI - ADMIRAL MONITOR · FORMENTI - ADMIRAL NCR 13" · FORMENTI - ADMIRAL YOF 91354 · FORMENTI - ADMIRAL YOF 91355 · NCR 13" · NCR MONITOR · NCR YOF 91351 · NCR YOF 91352
