HR 8282

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

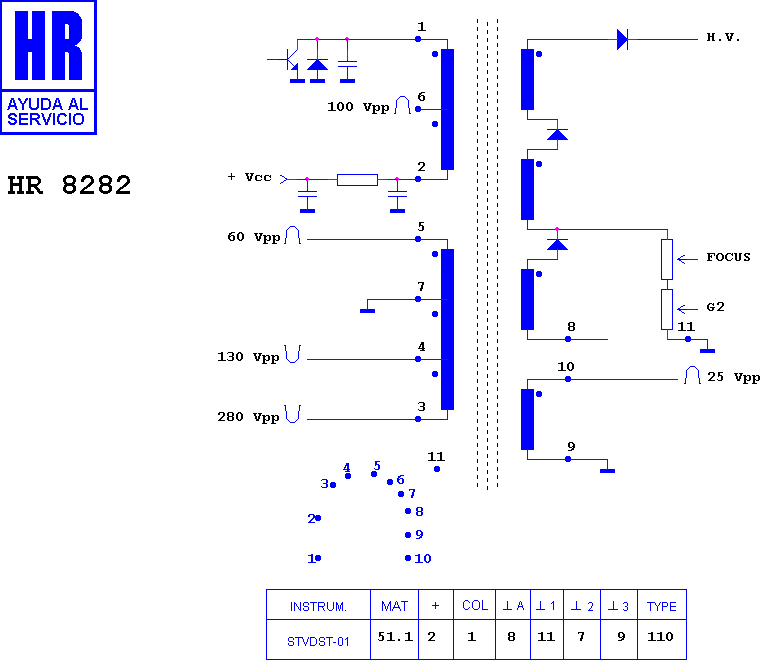

Schematic diagram for HR 8282
schematic

Manufacturer equivalents (2)

334 P 23104 · 334 P 231040

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80125 · HR 8031 · HR 8957 · HR 8232 · HR 8808 · HR 7856 · HR 6702 · HR 6544 · HR 6057

Fitted to (4)

MITSUBISHI CT 29 AS 1 EDT · MITSUBISHI CT 29 AS 1 ESDT · MITSUBISHI CT 29 AS 1 EST · MITSUBISHI CT 29 AS 1 ESTY
