HR 6544

type ST · family 1BP1 · 30.8 kV maximum anode voltage · 110° deflection · 5 windings · 360 g

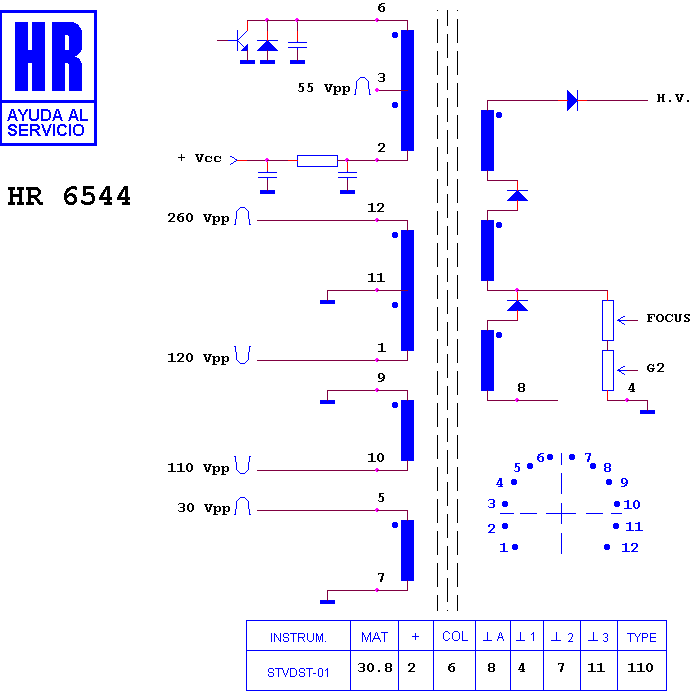

Schematic diagram for HR 6544
schematic

Manufacturer equivalents (2)

2433481 · Y 2433481

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7859 · HR 80052 · HR 6723 · HR 8275 · HR 8862 · HR 8292 · HR 8808 · HR 8282 · HR 8031

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
